In the realm of engineering marvels, the Belleville washer stands as a discreet yet indispensable component. As we delve into the intricate world of mechanical engineering, it becomes evident that these small, unassuming disc springs play a crucial role in a myriad of applications. Let's explore the fascinating and often overlooked purpose of Belleville washers.

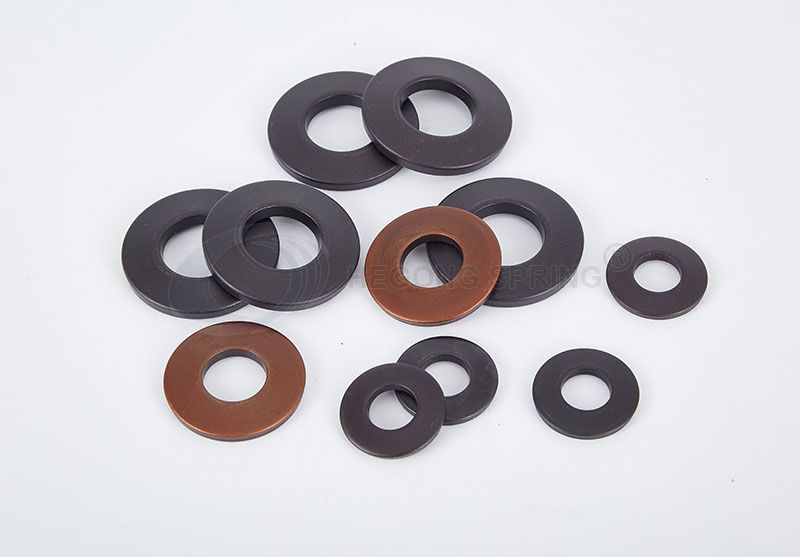

Belleville washers, also known as disc springs, are conically shaped spring washers with a slight curvature. Crafted from materials such as stainless steel or alloys, these washers are engineered to provide dynamic solutions in various mechanical setups. The unique shape imparts resilience and flexibility, making them a go-to choice in scenarios demanding reliability under pressure.
One of the primary applications of Belleville washers is in bolted joints. When preloading is essential to prevent loosening or maintaining tension in a joint, these washers come into play. Their ability to exert a consistent force over time ensures the integrity of the joint, proving crucial in heavy-duty machinery and critical structural assemblies.
Belleville washers showcase their versatility in scenarios where temperature variations are inevitable. Industries dealing with extreme temperatures, such as aerospace or manufacturing, leverage these washers to compensate for thermal expansion and contraction, safeguarding the structural integrity of components.
In dynamic mechanical systems, vibrations can pose a threat to both efficiency and longevity. Belleville spring washers with their shock-absorbing properties, find application in dampening vibrations. This feature is particularly valuable in machinery where precision and stability are paramount.
The effectiveness of Belleville washers hinges on the choice of materials. Engineers meticulously select alloys or stainless steel based on the specific requirements of the application. This careful consideration ensures durability, corrosion resistance, and the ability to withstand varying environmental conditions.
The conical shape of Belleville washers is not arbitrary; it's a result of precision engineering. The design is tailored to provide a uniform distribution of stress, enhancing the washer's overall resilience. Manufacturing processes, including stamping and heat treatment, contribute to achieving the desired mechanical properties.
The compact size of serrated belleville washer is a strategic advantage, especially in applications where space is at a premium. Their ability to deliver robust performance without occupying excessive room makes them a preferred choice in confined settings.
Unlike traditional coil springs, Belleville washers offer a distinct advantage in terms of load distribution. The conical shape ensures that stress is evenly spread across the washer, minimizing the risk of localized failure and enhancing the overall reliability of the system.
Durability is a hallmark of Belleville washers. The carefully selected materials and precise manufacturing processes contribute to their resistance to fatigue and extended lifespan. This characteristic is pivotal in applications where frequent cycling or prolonged use is a norm.
In conclusion, the purpose of a Belleville washer transcends its unassuming appearance. These small yet mighty components play a pivotal role in ensuring the structural integrity, reliability, and efficiency of mechanical systems across diverse industries. From preloading in bolted joints to compensating for thermal expansion and dampening vibrations, Belleville washers embody engineering excellence.
